前提条件

• 已开通包含GPU/NPU的Kubernetes集群。
• 已安装智算套件。

背景信息

本文演示如何提交一个PyTorch的分布式训练任务，相关的数据已经包含在容器镜像中。若用户自有模型或训练任务可自行下载数据集，通过使用CSI hpfs文件存储，通过PVC方式挂载进容器中使用。

操作步骤

• 进入云容器引擎控制台
• 点击左侧【集群】进入集群列表
• 点击使用的集群名称，进入集群
• 点击左侧【工作负载】->【自定义资源】，选择资源浏览器，找到kubeflow.org/v1/PyTorchJob ，选择命名空间，点击新增

• 在创建yaml中，填入以下信息后点击【创建】。

注意
1、GPU和昇腾NPU申请资源类型不一样，请使用对应的模板
2、修改对应的镜像仓库地址前缀为对应资源池，可在容器镜像控制台查看，如武汉41，则修改{image_repo}为registry-vpc-crs-wuhan41.ctyun.cn
 3、namespace: 要和界面选择的一致

GPU模板

apiVersion: "kubeflow.org/v1"
kind: PyTorchJob
metadata:
  name: pytorch-sample-gpu-01
  namespace: kubeflow
spec:
  pytorchReplicaSpecs:
    Master:
      replicas: 1
      restartPolicy: OnFailure
      template:
        spec:
          containers:
            - name: pytorch
              image: {image_repo}/library/kubeflow-examples-pytorch-dist-mnist:multi
              imagePullPolicy: IfNotPresent
              command:
                - "python3"
                - "/opt/mnist/src/mnist.py"
                - "--epochs=10"
                - "--backend=nccl"
              env:
              - name: PROTOCOL_BUFFERS_PYTHON_IMPLEMENTATION
                value: python
              resources:
                limits:
                  nvidia.com/gpu: 1
    Worker:
      replicas: 1
      restartPolicy: OnFailure
      template:
        spec:
          containers:
            - name: pytorch
              image: {image_repo}/library/kubeflow-examples-pytorch-dist-mnist:multi
              imagePullPolicy: IfNotPresent
              command:
                - "python3"
                - "/opt/mnist/src/mnist.py"
                - "--epochs=10"
                - "--backend=nccl"
              env:
              - name: PROTOCOL_BUFFERS_PYTHON_IMPLEMENTATION
                value: python
              resources:
                limits:
                  nvidia.com/gpu: 1

NPU模板

apiVersion: "kubeflow.org/v1"
kind: PyTorchJob
metadata:
  name: pytorch-sample-npu-01
  namespace: kubeflow
spec:
  pytorchReplicaSpecs:
    Master:
      replicas: 1
      restartPolicy: OnFailure
      template:
        spec:
          containers:
            - name: pytorch
              image: {image_repo}/library/kubeflow-examples-pytorch-dist-mnist:multi
              imagePullPolicy: IfNotPresent
              command:
                - "bash"
                - "-c"
              args: ["source /usr/local/Ascend/ascend-toolkit/set_env.sh && python3 /opt/mnist/src/mnist.py --epochs=10 --backend=hccl"]
              env:
              - name: PROTOCOL_BUFFERS_PYTHON_IMPLEMENTATION
                value: python
              resources:
                limits:
                  huawei.com/Ascend910: 1
                requests:
                  huawei.com/Ascend910: 1
    Worker:
      replicas: 1
      restartPolicy: OnFailure
      template:
        spec:
          containers:
            - name: pytorch
              image: {image_repo}/library/kubeflow-examples-pytorch-dist-mnist:multi
              imagePullPolicy: IfNotPresent
              command:
                - "bash"
                - "-c"
              args: ["source /usr/local/Ascend/ascend-toolkit/set_env.sh && python3 /opt/mnist/src/mnist.py --epochs=10 --backend=hccl"]
              env:
              - name: PROTOCOL_BUFFERS_PYTHON_IMPLEMENTATION
                value: python
              resources:
                limits:
                  huawei.com/Ascend910: 1
                requests:
                  huawei.com/Ascend910: 1

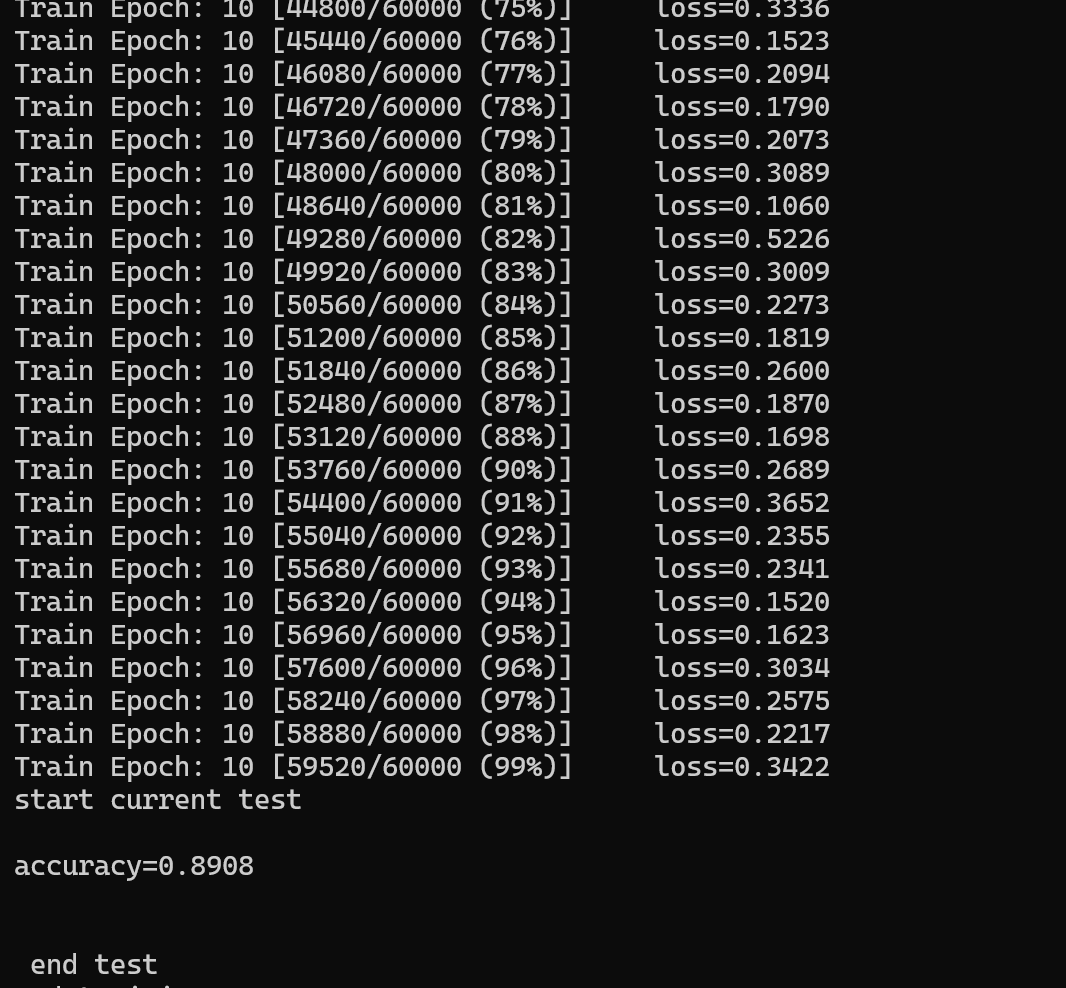

• 查看运行状态：点击左侧【工作负载】->【容器组】，找到任务名为前缀的容器，点击名称，查看日志/监控等信息是否符合预期。
