控制结构
分支
可以在工作流中定义多个分支，更根据表达式的值选择执行哪个分支。
使用CreateBranch()方法定义分支
//创建两个分支 var branch1 = builder.CreateBranch() .StartWith<PrintMessage>() .Input(step => step.Message, data => "hi from 1") .Then<PrintMessage>() .Input(step => step.Message, data => "bye from 1"); var branch2 = builder.CreateBranch() .StartWith<PrintMessage>() .Input(step => step.Message, data => "hi from 2") .Then<PrintMessage>() .Input(step => step.Message, data => "bye from 2"); //如果data.value1的值为one，则执行branch1 //如果data.value1的值为two，则执行branch2 builder .StartWith<HelloWorld>() .Decide(data => data.Value1) .Branch((data, outcome) => data.Value1 == "one", branch1) .Branch((data, outcome) => data.Value1 == "two", branch2);
foreach
public class ForEachWorkflow : IWorkflow
{
public string Id => "Foreach";
public int Version => 1;
public void Build(IWorkflowBuilder<object> builder)
{
builder
.StartWith<SayHello>()
.ForEach(data => new List<int>() { 1, 2, 3, 4 })
.Do(x => x
.StartWith<DisplayContext>()
.Input(step => step.Message, (data, context) => context.Item)
.Then<DoSomething>())
.Then<SayGoodbye>();
}
}while
public class WhileWorkflow : IWorkflow<MyData>
{
public string Id => "While";
public int Version => 1;
public void Build(IWorkflowBuilder<MyData> builder)
{
builder
.StartWith<SayHello>()
.While(data => data.Counter < 3)
.Do(x => x
.StartWith<DoSomething>()
.Then<IncrementStep>()
.Input(step => step.Value1, data => data.Counter)
.Output(data => data.Counter, step => step.Value2))
.Then<SayGoodbye>();
}
}if
public class IfWorkflow : IWorkflow<MyData>
{
public void Build(IWorkflowBuilder<MyData> builder)
{
builder
.StartWith<SayHello>()
.If(data => data.Counter < 3).Do(then => then
.StartWith<PrintMessage>()
.Input(step => step.Message, data => "Value is less than 3")
)
.If(data => data.Counter < 5).Do(then => then
.StartWith<PrintMessage>()
.Input(step => step.Message, data => "Value is less than 5")
)
.Then<SayGoodbye>();
}
}并行
public class ParallelWorkflow : IWorkflow<MyData>
{
public string Id => "parallel-sample";
public int Version => 1;
public void Build(IWorkflowBuilder<MyData> builder)
{
builder
.StartWith<SayHello>()
.Parallel()
.Do(then =>
then.StartWith<Task1dot1>()
.Then<Task1dot2>()
.Do(then =>
then.StartWith<Task2dot1>()
.Then<Task2dot2>()
.Do(then =>
then.StartWith<Task3dot1>()
.Then<Task3dot2>()
.Join()
.Then<SayGoodbye>();
}
}按计划执行
在未来按照计划执行，使得工作流在后台异步执行
builder
.StartWith(context => Console.WriteLine("Hello"))
.Schedule(data => TimeSpan.FromSeconds(5)).Do(schedule => schedule
.StartWith(context => Console.WriteLine("Doing scheduled tasks"))
)
.Then(context => Console.WriteLine("Doing normal tasks"));延迟执行
延迟工作流的当前分支一段时间
builder
.StartWith(context => Console.WriteLine("Hello"))
.Delay(p => TimeSpan.FromSeconds(5) );重复
设置一组重复的后台步骤，知道满足特定条件
builder
.StartWith(context => Console.WriteLine("Hello"))
.Recur(data => TimeSpan.FromSeconds(5), data => data.Counter > 5).Do(recur => recur
.StartWith(context => Console.WriteLine("Doing recurring task"))
)

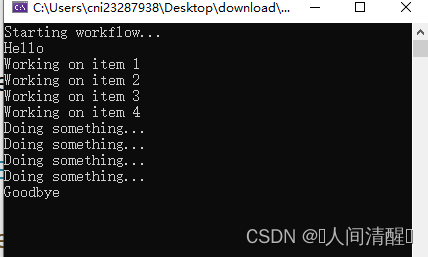

.Then(context => Console.WriteLine("Carry on"));案例 Parallel ForEach
steps
public class SayHello : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Hello");
return ExecutionResult.Next();
}
}
public class DisplayContext : StepBody
{
public object Item { get; set; }
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine($"Working on item {Item}");
return ExecutionResult.Next();
}
}
public class DoSomething : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Doing something...");
return ExecutionResult.Next();
}
}
public class SayGoodbye : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Goodbye");
return ExecutionResult.Next();
}
}workflow
public class ForEachWorkflow : IWorkflow
{
public string Id => "Foreach";
public int Version => 1;
public void Build(IWorkflowBuilder<object> builder)
{
builder
.StartWith<SayHello>()
.ForEach(data => new List<int> { 1, 2, 3, 4 })
.Do(x => x
.StartWith<DisplayContext>()
.Input(step => step.Item, (data, context) => context.Item)
.Then<DoSomething>())
.Then<SayGoodbye>();
}
}program
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
host.RegisterWorkflow<ForEachWorkflow>();
host.Start();
Console.WriteLine("Starting workflow...");
string workflowId = host.StartWorkflow("Foreach").Result;
Console.ReadLine();
host.Stop();
案例If
steps
public class PrintMessage : StepBody
{
public string Message { get; set; }
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine(Message);
return ExecutionResult.Next();
}
}
public class SayGoodbye : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Goodbye");
return ExecutionResult.Next();
}
}
public class SayHello : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Hello");
return ExecutionResult.Next();
}
}workflow
public class MyData
{
public int Counter { get; set; }
}
public class IfWorkflow : IWorkflow<MyData>
{
public string Id => "if-sample";
public int Version => 1;
public void Build(IWorkflowBuilder<MyData> builder)
{
builder
.StartWith<SayHello>()
.If(data => data.Counter < 3).Do(then => then
.StartWith<PrintMessage>()
.Input(step => step.Message, data => "Value is less than 3")
)
.If(data => data.Counter < 5).Do(then => then
.StartWith<PrintMessage>()
.Input(step => step.Message, data => "Value is less than 5")
)
.Then<SayGoodbye>();
}
}program
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
host.RegisterWorkflow<IfWorkflow, MyData>();
host.Start();
Console.WriteLine("Starting workflow...");
string workflowId = host.StartWorkflow("if-sample", new MyData { Counter = 4 }).Result;
Console.ReadLine();
host.Stop();

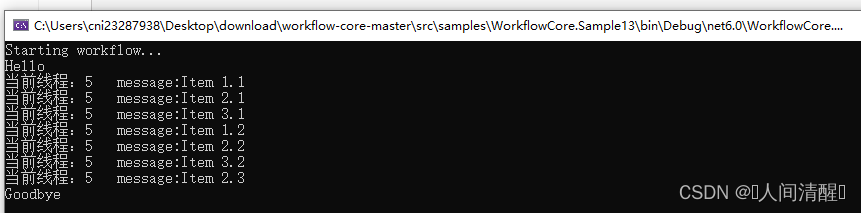

案例 Parallel Tasks
steps
public class PrintMessage : StepBody
{
public string Message { get; set; }
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("当前线程："+ Thread.GetCurrentProcessorId().ToString()+ "message:"+Message);
return ExecutionResult.Next();
}
}
public class SayHello : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Hello");
return ExecutionResult.Next();
}
}
public class SayGoodbye : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Goodbye");
return ExecutionResult.Next();
}
}workflow
public class MyData
{
public int Counter { get; set; }
}
public class ParallelWorkflow : IWorkflow<MyData>
{
public string Id => "parallel-sample";
public int Version => 1;
public void Build(IWorkflowBuilder<MyData> builder)
{
builder
.StartWith<SayHello>()
.Parallel()
.Do(then =>
then.StartWith<PrintMessage>()
.Input(step => step.Message, data => "Item 1.1")
.Then<PrintMessage>()
.Input(step => step.Message, data => "Item 1.2"))
.Do(then =>
then.StartWith<PrintMessage>()
.Input(step => step.Message, data => "Item 2.1")
.Then<PrintMessage>()
.Input(step => step.Message, data => "Item 2.2")
.Then<PrintMessage>()
.Input(step => step.Message, data => "Item 2.3"))
.Do(then =>
then.StartWith<PrintMessage>()
.Input(step => step.Message, data => "Item 3.1")
.Then<PrintMessage>()
.Input(step => step.Message, data => "Item 3.2"))
.Join()
.Then<SayGoodbye>();
}
}program
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
var controller = serviceProvider.GetService<IWorkflowController>();
controller.RegisterWorkflow<ParallelWorkflow, MyData>();//使用容器进行注册
Console.WriteLine("Starting workflow...");
controller.StartWorkflow<MyData>("parallel-sample");//使用容器开始
Console.ReadLine();
host.Stop();

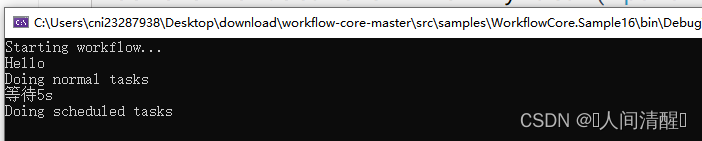

案例Schedule
workflow
class ScheduleWorkflow : IWorkflow
{
public string Id => "schedule-sample";
public int Version => 1;
public void Build(IWorkflowBuilder<object> builder)
{
builder
.StartWith(context => Console.WriteLine("Hello"))
.Schedule(data => TimeSpan.FromSeconds(5)).Do(schedule => schedule
.StartWith(context => Console.WriteLine("Doing scheduled tasks"))
)
.Then(context => { Console.WriteLine("Doing normal tasks"); Console.WriteLine("等待5s"); });
}
}

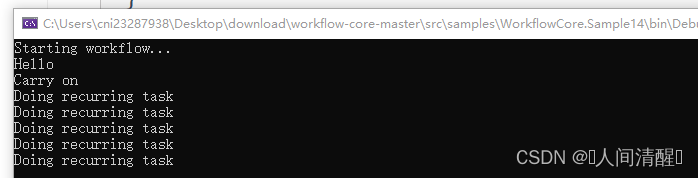

案例Recur
public class MyData
{
public int Counter { get; set; }
}
class RecurSampleWorkflow : IWorkflow<MyData>
{
public string Id => "recur-sample";
public int Version => 1;
public void Build(IWorkflowBuilder<MyData> builder)
{
builder
.StartWith(context => Console.WriteLine("Hello"))
//5s一次，直到data.Counter > 5
.Recur(data => TimeSpan.FromSeconds(5), data => data.Counter > 5).Do(recur => recur
.StartWith(context => Console.WriteLine("Doing recurring task"))
)
.Then(context => Console.WriteLine("Carry on"));
}
}

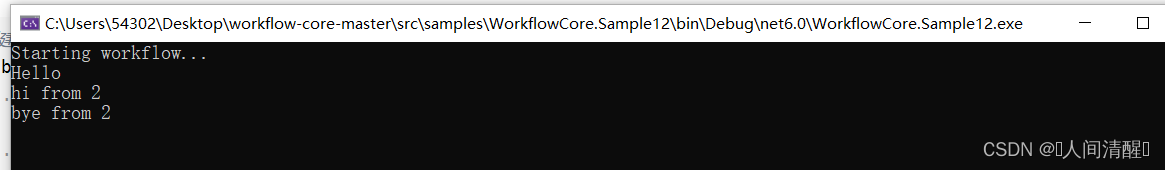

案例Branch
steps
public class PrintMessage : StepBody
{
public string Message { get; set; }
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine(Message);
return ExecutionResult.Next();
}
}
public class SayHello : StepBody
{
public override ExecutionResult Run(IStepExecutionContext context)
{
Console.WriteLine("Hello");
return ExecutionResult.Next();
}
}workflow
public class MyData
{
public int Value { get; set; }
}
public class OutcomeWorkflow : IWorkflow<MyData>
{
public string Id => "outcome-sample";
public int Version => 1;
public void Build(IWorkflowBuilder<MyData> builder)
{
var branch1 = builder.CreateBranch()
.StartWith<PrintMessage>()
.Input(step => step.Message, data => "hi from 1")
.Then<PrintMessage>()
.Input(step => step.Message, data => "bye from 1");
var branch2 = builder.CreateBranch()
.StartWith<PrintMessage>()
.Input(step => step.Message, data => "hi from 2")
.Then<PrintMessage>()
.Input(step => step.Message, data => "bye from 2");
//如果data.value1的值为one，则执行branch1
//如果data.value1的值为two，则执行branch2
builder
.StartWith<SayHello>()
.Decide(data => data.Value)
.Branch(1, branch1)
.Branch(2, branch2);
}
}program
IServiceCollection services = new ServiceCollection();
services.AddLogging();
services.AddWorkflow();
var serviceProvider = services.BuildServiceProvider();
var host = serviceProvider.GetService<IWorkflowHost>();
host.RegisterWorkflow<OutcomeWorkflow, MyData>();
host.Start();
Console.WriteLine("Starting workflow...");
host.StartWorkflow("outcome-sample", new MyData { Value = 2 });
Console.ReadLine();
host.Stop();
