概述

服务网格支持使用opentelmetry方式接入应用性能监控链路追踪能力，本章节介绍如何开启和使用链路追踪。

开启条件

需要开通APM应用性能监控，可参考开通应用性能监控-应用性能监控-快速入门 - 天翼云 (ctyun.cn)
需要在网格实例所属VPC下开通APM相关的终端节点（VPCE）

开启方式

登录服务网格控制台，网格实例 -> 网格配置 -> 自定义配置 -> 启用链路追踪开启即可。

开启时，您需要设置采样里，取值1-100。

如果您还未开通应用性能监控服务及链路追踪数据上报需要的VPCE等资源，您可以授权服务网格组件一键开通相关资源。

链路追踪接入示例

概述

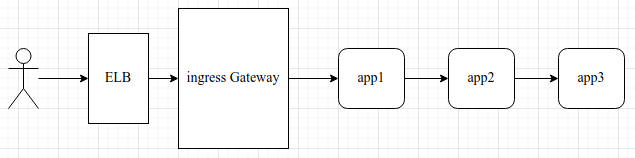

本节展示服务网格接入链路追踪的操作流程及效果，首先确认已经开启了链路追踪功能开关并将采样率配置为100%。演示架构如下图所示

其中ELB和Ingress Gateway作为接入层，业务层包括app1、app2、app3三个服务（分别都注入了网格sidecar），业务代码中也通过opentelemetry方式接入了链路追踪，触发数据面访问后，预期会上报链路数据到APM，完整覆盖网格数据面和应用。

部署测试程序

创建demo命名空间并配置好相关注入标签，保证sidecar注入；部署应用及服务，如下

注意

本示例使用的镜像地址是华南2资源池，如果您在其他资源池体验，请替换镜像地址
本示例采用go语言+opentelemetry方式接入链路追踪，您可以参考应用性能监控go语言接入链路追踪的文档将Deployment中的token和endpoint环境变量替换成您看到的值

apiVersion: apps/v1
kind: Deployment
metadata:
  name: app1-base
  namespace: demo
  labels:
    app: app1
    csm-traffic-tag: base
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app1
      name: app1
      csm-traffic-tag: base
  template:
    metadata:
      labels:
        sidecar.istio.io/inject: "true"
        app: app1
        name: app1
        source: CCSE
        csm-traffic-tag: base
    spec:
      containers:
        - name: default
          image: registry-vpc-crs-huanan2.cnsp-internal.ctyun.cn/library/trace-demo:otel
          imagePullPolicy: Always
          env:
            - name: token
              value: your-apm-licence
            - name: endpoint
              value: apm-huanan2.cnsp-internal.ctyun.cn:27141
            - name: version
              value: base
            - name: app
              value: app1
            - name: upstream_url
              value: "http://app2:8000/"
          ports:
            - containerPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app2-base
  namespace: demo
  labels:
    app: app2
    csm-traffic-tag: base
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app2
      name: app2
      csm-traffic-tag: base
  template:
    metadata:
      labels:
        sidecar.istio.io/inject: "true"
        app: app2
        name: app2
        source: CCSE
        csm-traffic-tag: base
    spec:
      containers:
        - name: default
          image: registry-vpc-crs-huanan2.cnsp-internal.ctyun.cn/library/trace-demo:otel
          imagePullPolicy: Always
          env:
            - name: token
              value: your-apm-licence
            - name: endpoint
              value: apm-huanan2.cnsp-internal.ctyun.cn:27141
            - name: version
              value: base
            - name: app
              value: app2
            - name: upstream_url
              value: "http://app3:8000/"
          ports:
            - containerPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app3-base
  namespace: demo
  labels:
    app: app3
    csm-traffic-tag: base
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app3
      name: app3
      csm-traffic-tag: base
  template:
    metadata:
      labels:
        sidecar.istio.io/inject: "true"
        app: app3
        name: app3
        source: CCSE
        csm-traffic-tag: base
    spec:
      containers:
        - name: default
          image: registry-vpc-crs-huanan2.cnsp-internal.ctyun.cn/library/trace-demo:otel
          imagePullPolicy: Always
          env:
            - name: token
              value: your-apm-licence
            - name: endpoint
              value: apm-huanan2.cnsp-internal.ctyun.cn:27141
            - name: version
              value: base
            - name: app
              value: app3
          ports:
            - containerPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app1-test
  namespace: demo
  labels:
    app: app1
    csm-traffic-tag: test
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app1
      name: app1
      csm-traffic-tag: test
  template:
    metadata:
      labels:
        sidecar.istio.io/inject: "true"
        app: app1
        name: app1
        source: CCSE
        csm-traffic-tag: test
    spec:
      containers:
        - name: default
          image: registry-vpc-crs-huanan2.cnsp-internal.ctyun.cn/library/trace-demo:otel
          imagePullPolicy: Always
          env:
            - name: token
              value: your-apm-licence
            - name: endpoint
              value: apm-huanan2.cnsp-internal.ctyun.cn:27141
            - name: version
              value: test
            - name: app
              value: app1
            - name: upstream_url
              value: "http://app2:8000/"
          ports:
            - containerPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app2-test
  namespace: demo
  labels:
    app: app2
    csm-traffic-tag: test
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app2
      name: app2
      csm-traffic-tag: test
  template:
    metadata:
      labels:
        sidecar.istio.io/inject: "true"
        app: app2
        name: app2
        source: CCSE
        csm-traffic-tag: test
    spec:
      containers:
        - name: default
          image: registry-vpc-crs-huanan2.cnsp-internal.ctyun.cn/library/trace-demo:otel
          imagePullPolicy: Always
          env:
            - name: token
              value: your-apm-licence
            - name: endpoint
              value: apm-huanan2.cnsp-internal.ctyun.cn:27141
            - name: version
              value: test
            - name: app
              value: app2
            - name: upstream_url
              value: "http://app3:8000/"
          ports:
            - containerPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app3-test
  namespace: demo
  labels:
    app: app3
    csm-traffic-tag: test
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app3
      name: app3
      csm-traffic-tag: test
  template:
    metadata:
      labels:
        sidecar.istio.io/inject: "true"
        app: app3
        name: app3
        source: CCSE
        csm-traffic-tag: test
    spec:
      containers:
        - name: default
          image: registry-vpc-crs-huanan2.cnsp-internal.ctyun.cn/library/trace-demo:otel
          imagePullPolicy: Always
          env:
            - name: token
              value: your-apm-licence
            - name: endpoint
              value: apm-huanan2.cnsp-internal.ctyun.cn:27141
            - name: version
              value: test
            - name: app
              value: app3
          ports:
            - containerPort: 8000
---
apiVersion: v1
kind: Service
metadata:
  name: app1
  labels:
    app: app1
    service: app1
spec:
  ports:
    - port: 8000
      name: http
  selector:
    app: app1
---
apiVersion: v1
kind: Service
metadata:
  name: app2
  labels:
    app: app2
    service: app2
spec:
  ports:
    - port: 8000
      name: http
  selector:
    app: app2
---
apiVersion: v1
kind: Service
metadata:
  name: app3
  labels:
    app: app3
    service: app3
spec:
  ports:
    - port: 8000
      name: http
  selector:
    app: app3

部署网关

开通网关并配置虚拟服务资源，将入口流量引入app1应用，具体参考网关相关文档。

访问验证

通过网关入口地址访问业务，如下

# cat test.sh
#!/bin/bash
for((i=0;i<100;i++))
do
curl http://192.168.0.3:18080/t -H 'host: app1.demo.svc.cluster.local'
echo ''
done
# ./test.sh
[app1] (version: test, ip: 192.168.0.12) -> [app2] (version: base, ip: 192.168.0.48) -> [app3] (version: test, ip: 192.168.0.20)
[app1] (version: test, ip: 192.168.0.12) -> [app2] (version: test, ip: 192.168.0.43) -> [app3] (version: test, ip: 192.168.0.20)
[app1] (version: base, ip: 192.168.0.46) -> [app2] (version: test, ip: 192.168.0.43) -> [app3] (version: test, ip: 192.168.0.20)
[app1] (version: base, ip: 192.168.0.46) -> [app2] (version: base, ip: 192.168.0.48) -> [app3] (version: base, ip: 192.168.0.47)
[app1] (version: base, ip: 192.168.0.46) -> [app2] (version: test, ip: 192.168.0.43) -> [app3] (version: test, ip: 192.168.0.20)
[app1] (version: base, ip: 192.168.0.46) -> [app2] (version: test, ip: 192.168.0.43) -> [app3] (version: base, ip: 192.168.0.47)
[app1] (version: test, ip: 192.168.0.12) -> [app2] (version: test, ip: 192.168.0.43) -> [app3] (version: test, ip: 192.168.0.20)
[app1] (version: test, ip: 192.168.0.12) -> [app2] (version: base, ip: 192.168.0.48) -> [app3] (version: base, ip: 192.168.0.47)
[app1] (version: test, ip: 192.168.0.12) -> [app2] (version: base, ip: 192.168.0.48) -> [app3] (version: test, ip: 192.168.0.20)

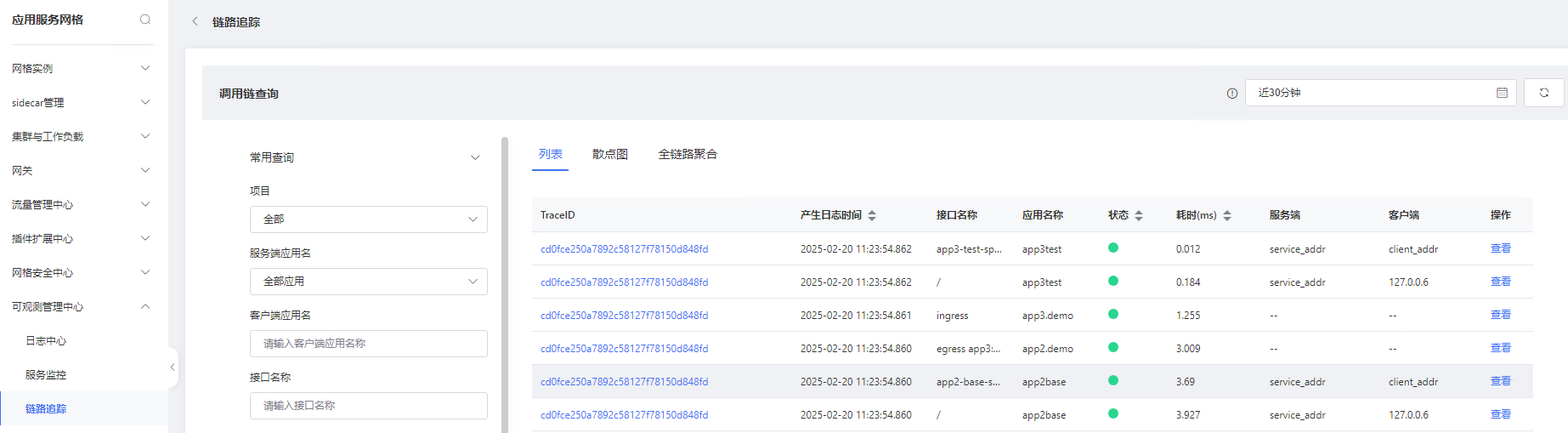

进入服务网格控制台 -> 可观测管理中心 -> 链路追踪菜单，可以看到产生了一系列链路追踪数据

点击其中一条TraceID可以进一步看到整个链路的瀑布图，如下可以清晰展示出整个调用链的关系及主要耗时点
